STACKABLE CONCRETE WASHOUT PAN (72″ x 72″ x 24″)

STACKABLE CONCRETE WASHOUT PAN (72″ x 72″ x 24″)

The Stackable Concrete Washout Pan is essential on-site equipment to collect concrete washout water and solids from the washing down of truck chutes and pump truck hoppers at construction sites.

  • High quality forged steel Pewag rated D-rings for high-strength lifting points (comparable to Crosby)
  • Integrated fork pockets
  • Fully-welded construction inside and out
  • Leakproof
  • Stackable design (up to 9 units) for transport or storage
  • D-rings also serve as tie-down points for transport
  • Not to exceed 75% of volume
  • OSHA Rigging compliant

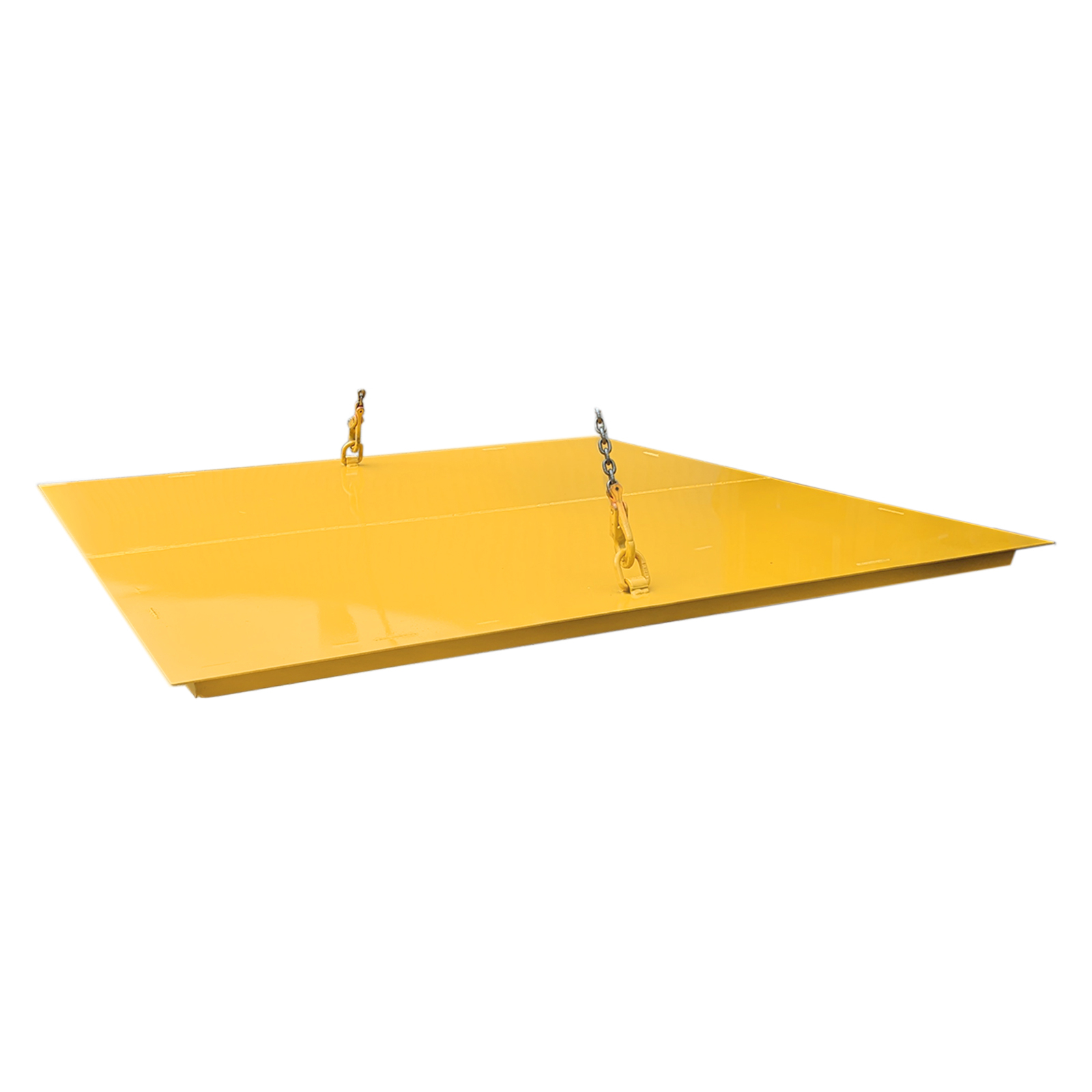

  • Steel Rain Lid (SKU#WPL-727224) is sold separately
  • Made in America
  • Click here for Operational Safety Instructions
Weight 800 lbs
Overall Dimensions 72 × 72 × 24 in
Weight Load Limit 11,250 lbs.
Volume 2.2 CU YDS, 447 GAL, 60 CU FT

Description

Why does your construction site need washout pans?

Washout pans are essential on-site equipment and EPA best practice management to collect concrete washout water and solids that runoff from washing truck chutes and pump truck hoppers at construction sites. Collecting the washout water prevents contamination of soil surface and ground water, and allows the wash water to be reclaimed or re-used. Concrete pouring, truck washing, and tool washing results in the production waste slurries and wash water.  Concrete slurries and wash waters typically have a high pH of around 12 standard units. They can also contain heavy metals. Both pH and heavy metals can be dangerous to aquatic life. If wash water is dumped onto the soil surface, it can leach into and contaminate lakes, rivers and streams.

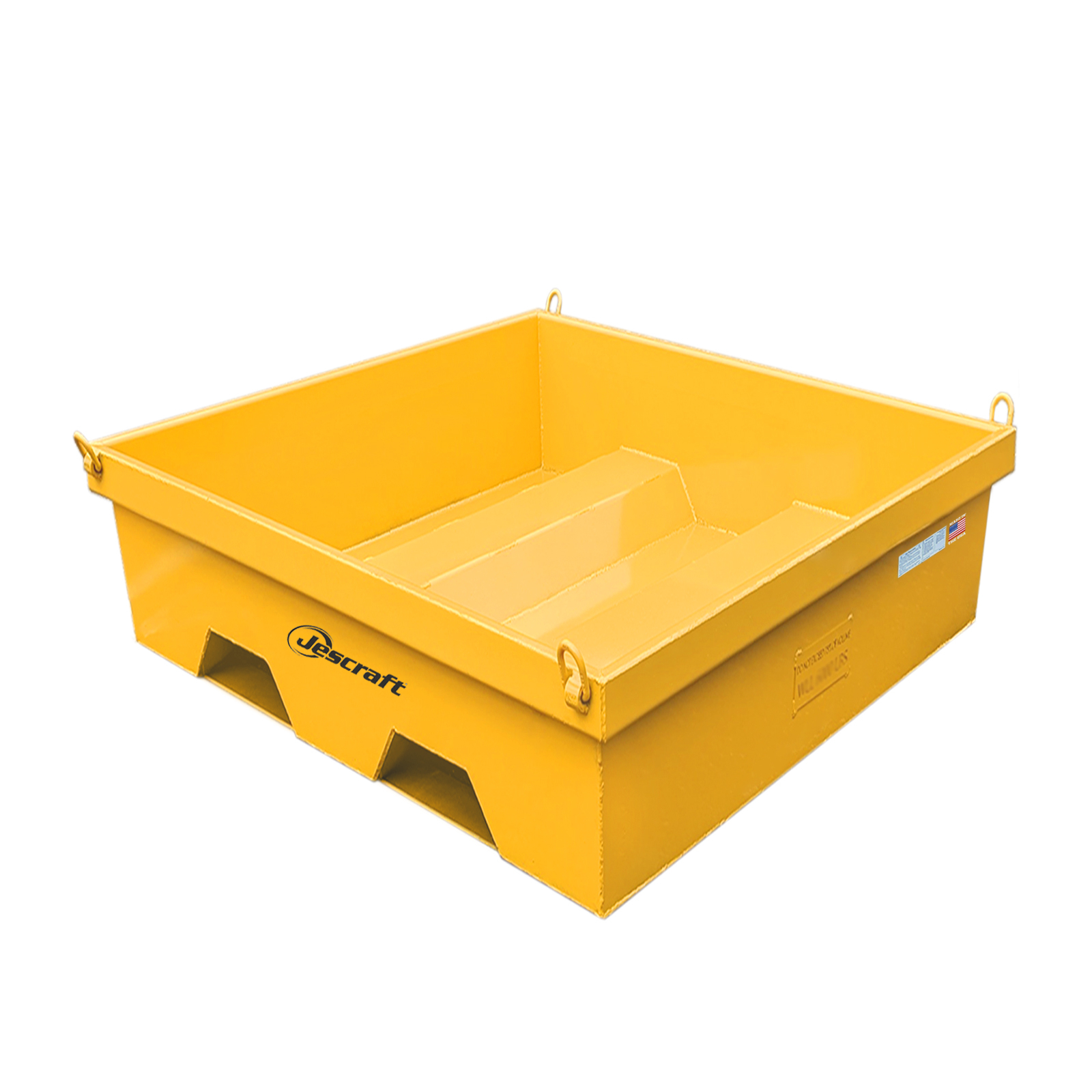

Stackable Concrete Washout Pan

The Stackable Concrete Washout Pan is your jobsite solution for collecting concrete washout or washwater. Truck chutes, pump hoppers and tools can be washed in the container, which will hold the liquids and solids until reclaimed. The Concrete Washout Pan is a leakproof washout pan.  It also features high-quality Pewag rated D-rings, providing exceptionally strong lifting points. These D-rings swivel 180 degrees, allowing for connection at the desired position. Additionally, the D-rings also provide secure tie-down points when transporting one or more washout pans.  Up to 9 units can be transported or stored together with this washout pan’s stackable design.

Concrete washout pans should not exceed the recommended fill capacity and should be cleaned out upon reaching 75% of capacity. To avoid potential overflowing during a rainfall, add a Steel Washout Pan Lid (SKU# WPL-727224).

Manufactured in the USA.

Product images shown are for illustration purposes only and may vary from actual products.

*Note:  Always distribute load evenly.  When uniform weight capacity is calculated for any product, the capacity is based on the weight being uniformly distributed over the entire usable area.  For those products with casters or wheels, the maximum weight capacity is the lowest weight capacity of either the product or the set of casters/wheels.
