MOBILE BAR CART

MOBILE BAR CART

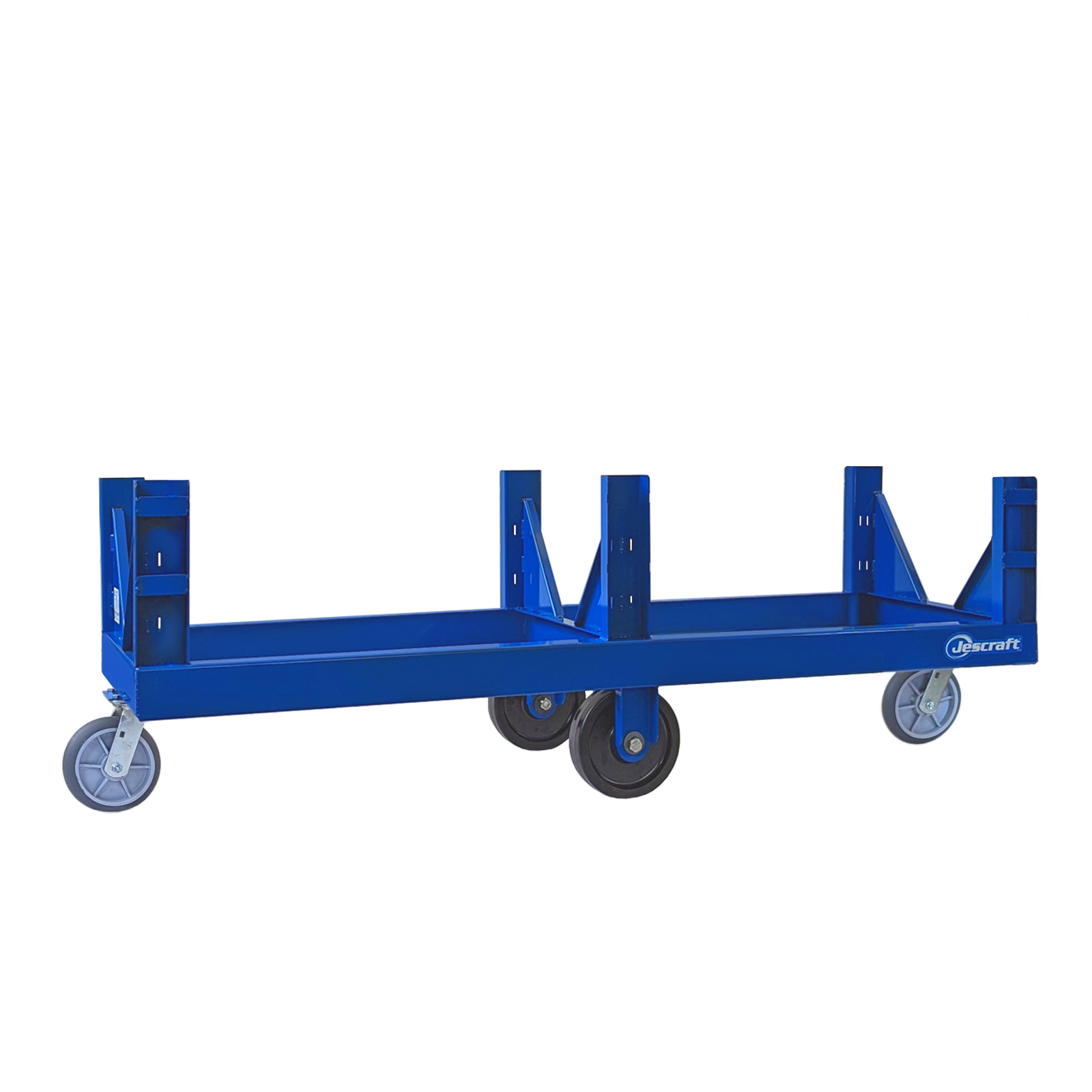

The Mobile Bar Cart easily moves heavy loads of pipes, bars, angles or tubes.  The cradle design facilitates bulk loading or unloading with a forklift or hoisting equipment.

  • All-welded 10 gauge steel construction
  • Features Qty (2) 8″ High-performance Swivel Elastomer Casters and Qty (2) 10″ Phenolic Wheels
  • Diamond footprint casters & wheels increase maneuverability, allowing the cart to turn within its own radius
  • 3 cradle design
  • Sample load, by example, would include a minimum of Qty (50) 10ft long, 2” SCH 40 pipes

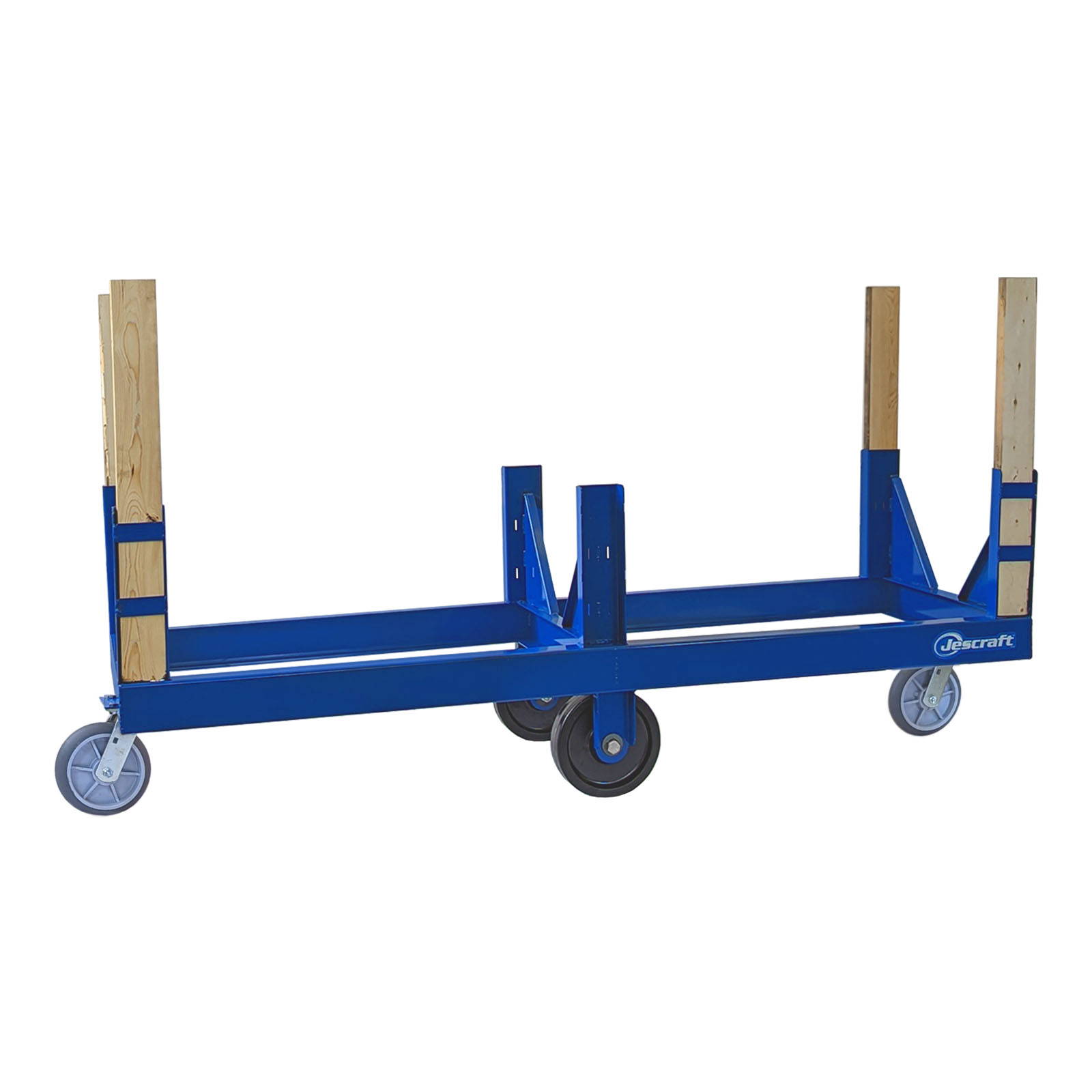

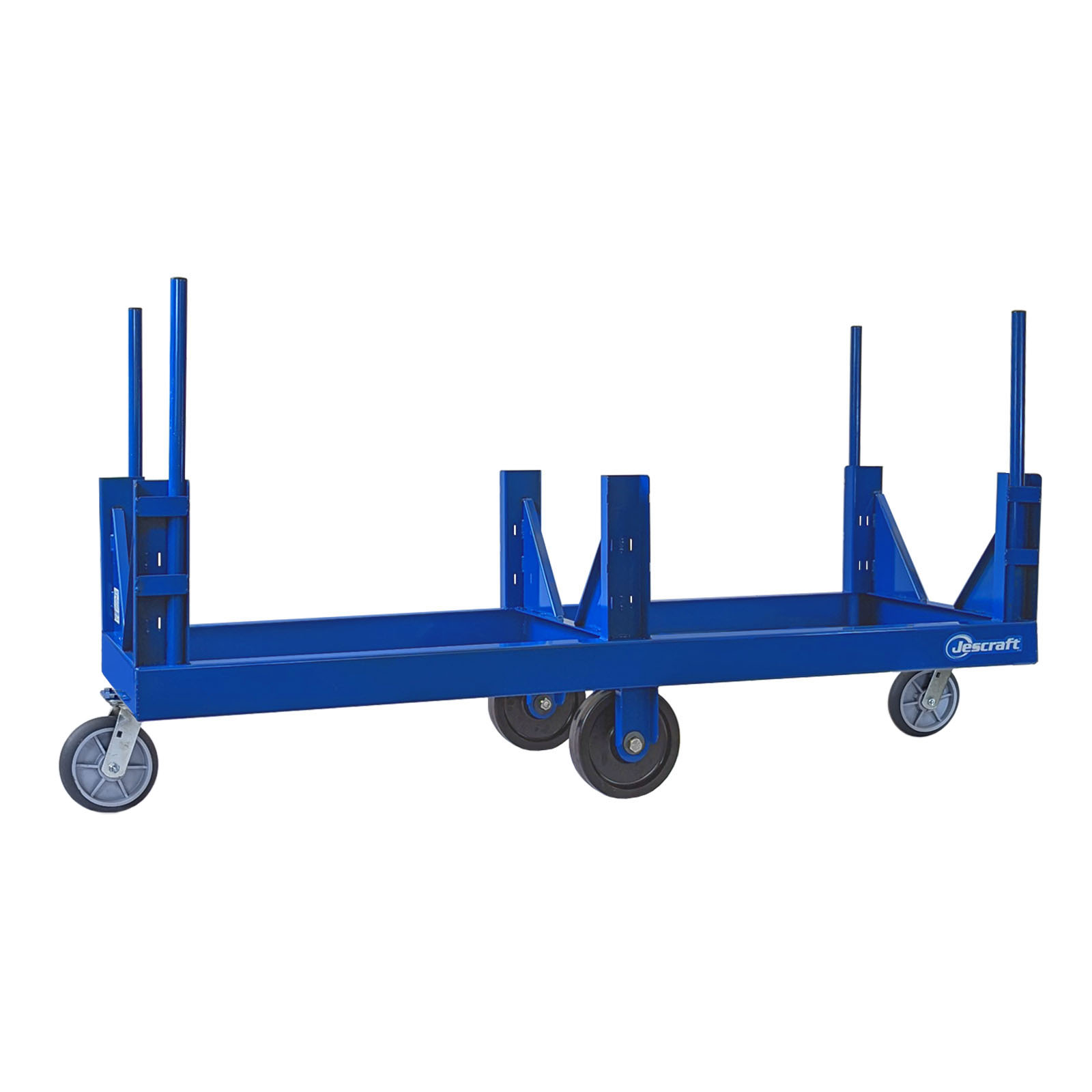

  • Designed to allow steel stakes (SKU# PS-30) or your own cut 2″x 4″ wood stakes or 1″ pipe/round from the jobsite*
  • Click here, to view Operational Safety and Assembly Instructions







SKU: MBC-8628PL-4K Categories: ,
Weight 146 lbs
Overall Dimensions 86.5 × 28 × 28.13 in
Deck Height 14"
Caster Type 8" High-performance Elastomer casters, 2 swivel
Wheel Type 10" Phenolic Wheels, 2 Rigid
Assembly Assembled
Uniform Capacity* 4,000 lbs.

Description

The Mobile Bar Cart effectively moves heavy loads of pipes, bars, angles or tubes.   The cradle design facilitates bulk loading or unloading of material with a forklift or hoisting equipment.  The caster arrangement’s diamond pattern allows the cart to turn on its own radius, making maneuverability easy by allowing the cart to move in any direction.  Great for working in tight areas or moving around corners or narrow pathways.  The all-welded construction of this cart provides strength and durability, making this cart ideal for moving and storing long length materials.   This cart is designed to allow for the addition of steel stakes (sold separately as SKU# PS-30) or conveniently, add from the jobsite, your own cut 2″x 4″ wood stakes or 1″ pipe/round. Combine multiple units for greater capacity.

*The PS-30 Steel Stakes, 2” x 4” lumber, and 1” pipe/round adds an additional 15.5″ of height, once inserted in the receivers.  Steel stakes consisting of 1” pipe/round shall not exceed 33.5”in length.  Wood stakes consisting of 2”x 4” lumber shall not exceed 30” in length.

Product images shown are for illustration purposes only and may vary from actual products.

*Note:  Always distribute load evenly.  When uniform weight capacity is calculated for any product, the capacity is based on the weight being uniformly distributed over the entire usable area.  For those products with casters or wheels, the maximum weight capacity is the lowest weight capacity of either the product or the set of casters/wheels.
